CORETEC AC Servo Press
A servo press is a high-tech machine that uses a servo motor to drive its operations. It outperforms traditional hydraulic presses by starting up faster and offering superior control, which boosts production efficiency. With the ability to fine-tune stroke, speed, and thrust, it enables precise and complex movements. Additional advantages include energy savings, low noise, and features like OK/NG judgment and traceability.
SERVO PRESS FEATURES
The CORETEC Servo Press is an electric press ideal for automotive production lines and light electrical appliance manufacturing, where precision and cleanliness are crucial. This easy-to-use press can effectively replace hydraulic models without the need for extra equipment, meeting both traceability and environmental standards seamlessly.
Compact
Small pitch allows multi-axis press-fitting.
Multi-axis press-fitting allows fewer processes and saves space.
Reduces cycle time and cost of overall system.
Real-time control
Immediately stops when problem occurs, limiting damage to workpieces.
As an example, in the following video, an egg is representing a workpiece set incorrectly on the machine which is started. Once it is started quickly detect the workpiece height as NG and stop the ram.
Long life, high rigidity
Adoption of special ball screws enables compactness as well as durability that outperforms the competition.

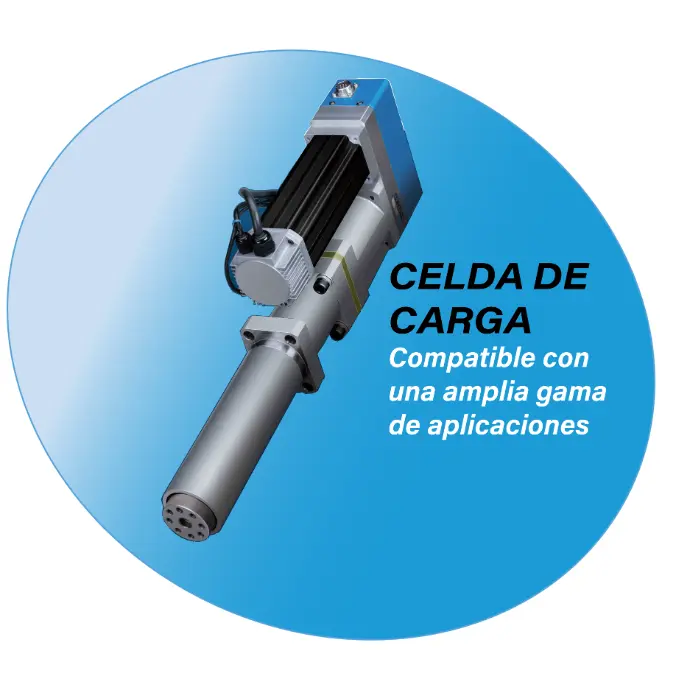

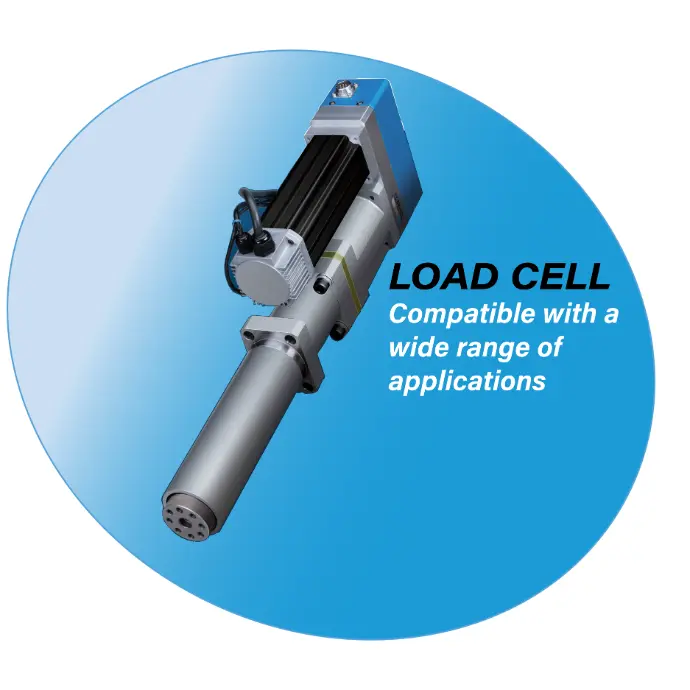

Push/pull operation capability (load control)
Built-in load cells allow for control with tensile loads and support for broad range of applications.
Compact
Small pitch allows multi-axis press-fitting.
Multi-axis press-fitting allows fewer processes and saves space.
Reduces cycle time and cost of overall system.
Real-time control
Immediately stops when problem occurs, limiting damage to workpieces.
As an example, in the following video, an egg is representing a workpiece set incorrectly on the machine which is started. Once it is started quickly detect the workpiece height as NG and stop the ram.
Long life, high rigidity
Adoption of special ball screws enables compactness as well as durability that outperforms the competition.
Push/pull operation capability (load control)
Built-in load cells allow for control with tensile loads and support for broad range of applications.
SERVO PRESS SPECIFICATIONS
Press Capacity: 2-200 kN
Wide range of press capacities available, suitable for various applications, from small to large workpieces
Frame Type: C-Frame, 4-Column, Desktop
Various frame types for different applications, flexible design options for easy integration into production lines
Synchronized Press: Multiple-Shaft
Evenly pressure application for large workpieces, ideal for applications requiring precise and uniform pressure
Power Source: AC Servo Motor
High-performance AC servo motor for precise control, energy-efficient and reliable operation
AC SERVOPRESS MODELS
CONTROLLER SPECIFICATIONS
Did you find Servo Press useful for your company?
Download the catalog and get to know all the details
